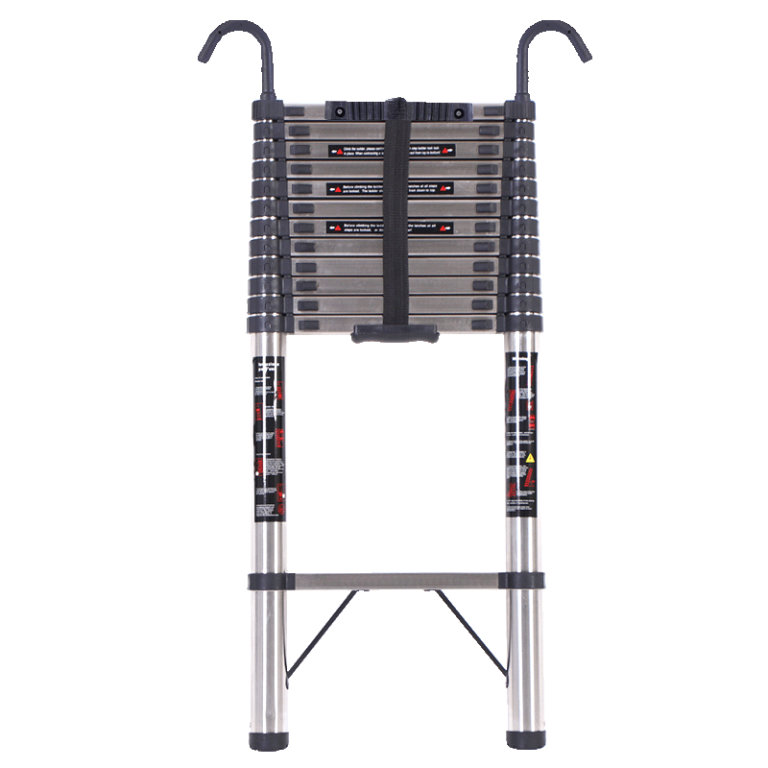

Stainless steel telescoping ladders, incorporating cushion and hook, offer versatile leaning options such as walls, electric poles, and tree trunks. The hooks are designed to hang securely along walls or on railings, making installation straightforward. The ladder’s telescoping mechanism allows for easy adjustment to different lengths, catering to a range of applications. Crafted to withstand loads of up to 150 kilograms, it rests firmly on a black support frame at the bottom, ensuring reliable stability.
Hook Installation Four Steps
Hook type straight ladder, hook can be installed and removed, safe and easy
1. The latch and the hook hole face each other
2. Prepare to push the switch left 360° rotation
3. Insert the hook, release the switch, and make sure the latch is inserted into the hook hole
4. The rotatable hook can be adjusted to the desired angle
Wall hanging
1.The hook base adopts German advanced rivet technology, which is strong in force, firm and not loose, and more assured
2.The hook can be rotated 360 degrees. If you need to fix the hook in one direction, you don’t need to turn it. Just tighten the screw at the bottom of the hook and install the hook in the direction you want. If you don’t understand, you can watch the video tutorial or consult customer service.
Hook the fence hook can hook the 7cm diameter round and square pipes, the top is stressed, and it is not easy to slide and lean back
hook the fence
The hook can hook 7 cm diameter round and square pipes, the top is stressed, and it is not easy to slip and lean back
Flat against the wall
1. Hooks can advertise 360 degrees
2 The surface of the hook is wrapped with PVC rubber, and there will be no traces on the wall after construction
Correct way to open the ladder
1.Pull open at the top, shrink at the bottom
2.Open all the step
If the ladder is to be used short, the top should be fully opened and the bottom contracted.The middle part of the ladder should not be opened or closed, or should not be pulled into place.
Make sure that both switches are locked at each step before climbing the ladder.
Wrong way to open the ladder
1.The middle step is partially opened and partially closed
2.Middle step not pulled in place (false lock)
SIZE | Item No. | Straight Ladder Length (m) | CLOSED SIZE (cm) | Packing Size (cm) |
Width (cm) | G.W (kgs) | No.of Step | Max.Load(kgs) | Qty 20FT(pcs) | Qty 40HQ(pcs) |
Anti-slip cushion 2.0m steel ladder with hook | JDT1020SSHA30 | ladder length2.0m+10 cm hook | 68cm | 68X50X9cm | 48cm | 5.4kgs | 7 steps | 150kgs | 1273 | 3091 |
Anti-slip cushion 2.6m steel ladder with hook | JDT1026SSHA30 | ladder length2.6m+10 cm hook | 74.5cm | 75.5X50X9cm | 48cm | 7.2kgs | 9 steps | 150kgs | 966 | 2345 |
Anti-slip cushion 2.9m steel ladder with hook | JDT1029SSHA30 | ladder length2.9m+10 cm hook | 78.5cm | 79.5X50X9.5cm | 48cm | 8kgs | 10 steps | 150kgs | 933 | 2267 |
Anti-slip cushion 3.2m steel ladder with hook | JDT1032SSHA30 | ladder length3.2m+10 cm hook | 81cm | 82X50X9.5cm | 48cm | 9kgs | 11 steps | 150kgs | 737 | 1789 |
Anti-slip cushion 3.8m steel ladder with hook | JDT1038SSHA30 | ladder length3.8m+10 cm hook | 87cm | 88X50X9.5cm | 48cm | 10.9kgs | 13 steps | 150kgs | 636 | 1545 |
Anti-slip cushion 4.1m steel ladder with hook | JDT1041SSHA30 | ladder length4.1m+10 cm hook | 90cm | 91x50x10cm | 48cm | 11.4kgs | 14 steps | 150kgs | 622 | 1511 |
Anti-slip cushion 4.4m steel ladder with hook | JDT1044SSHA30 | ladder length4.4m+10 cm hook | 93cm | 94x50x10cm | 48cm | 12.4kgs | 15 steps | 150kgs | 609 | 1478 |
Whatever the occasion, whether you’re buying for yourself or to distribute, we have it all! Send us inquiry to find out about our volume discounts.
