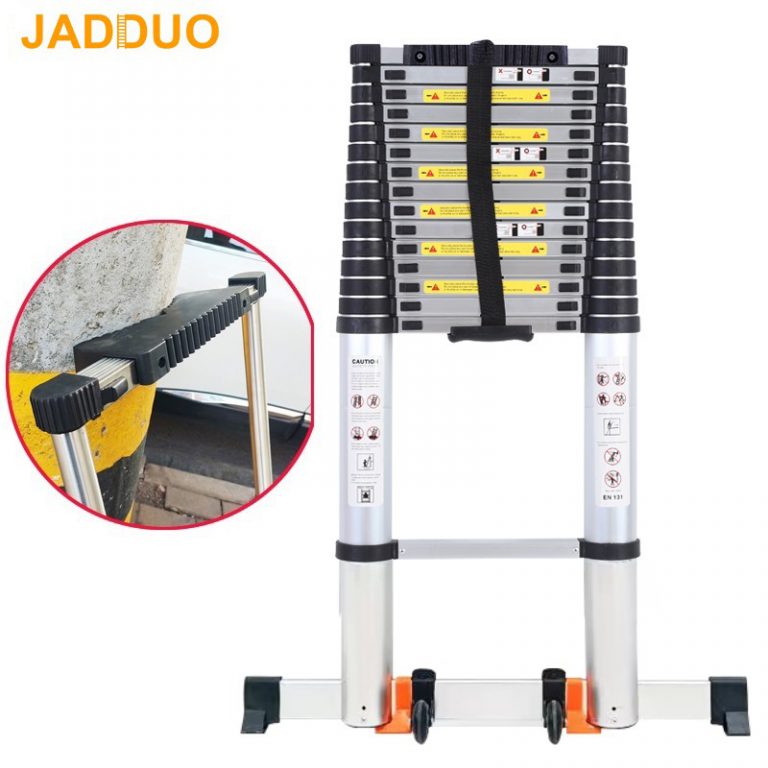

1.Portable and Compact Design by JADDUO:Our Telescoping Ladder, proudly brought to you by JADDUO, offers unparalleled portability and compactness. Easily stow it away in your motorhome, SUV, RV, or any vehicle. Despite its small size, it extends to impressive heights and folds up neatly for effortless transportation
2.Safety Reminder:Prior to use, ensure the ladder is fully upright and all locks are securely engaged. Never move the ladder while someone is on it. When retracting, start from the bottom and avoid placing fingers between the rungs to prevent accidents

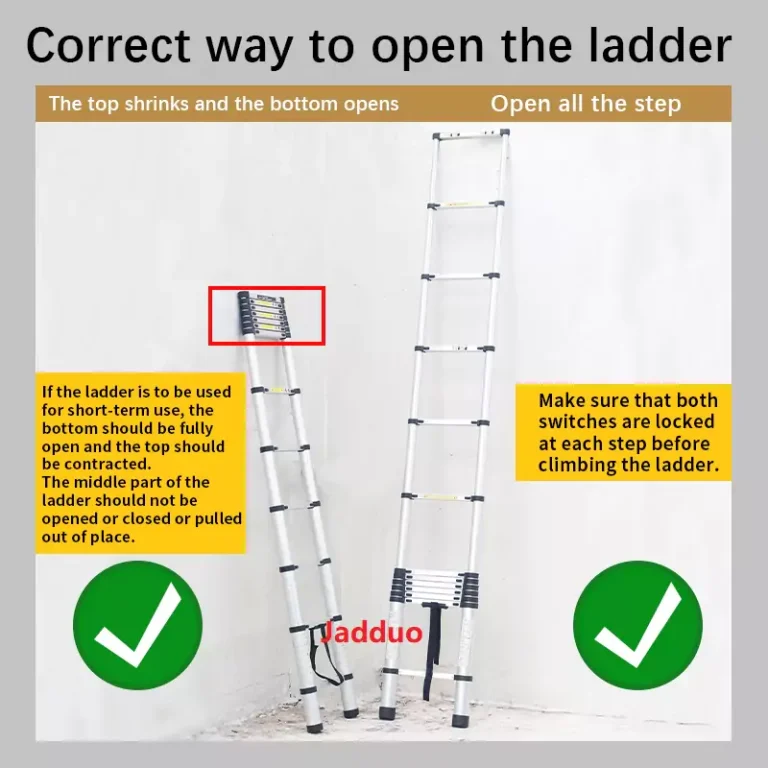

Correct way to open the ladder
1.Pull open at the top, shrink at the bottom
2.Open all the step

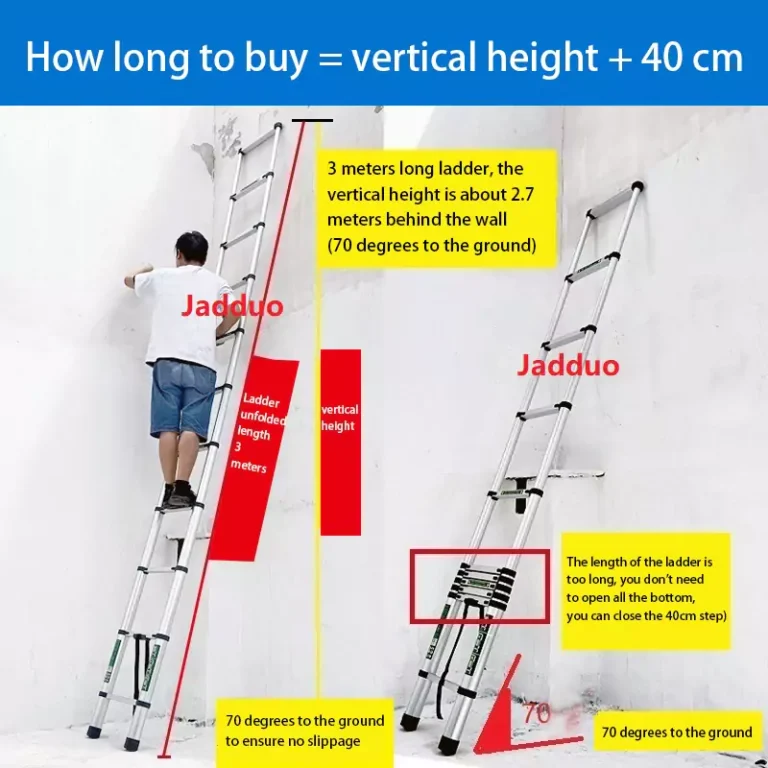

If the ladder is to be used short, the top should be fully opened and the bottom contracted.The middle part of the ladder should not be opened or closed, or should not be pulled into place.

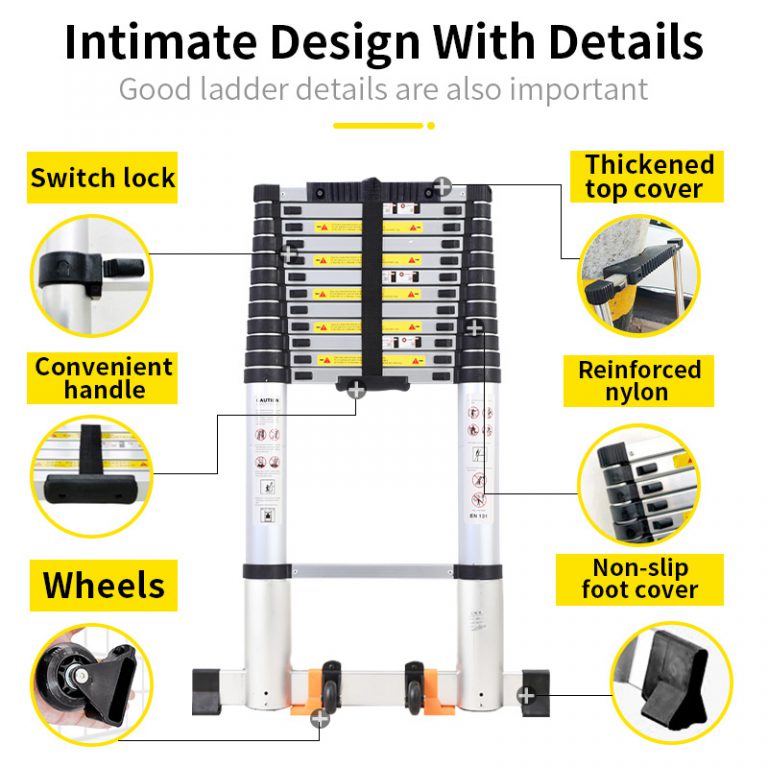

Make sure that both switches are locked at each step before climbing the ladder.

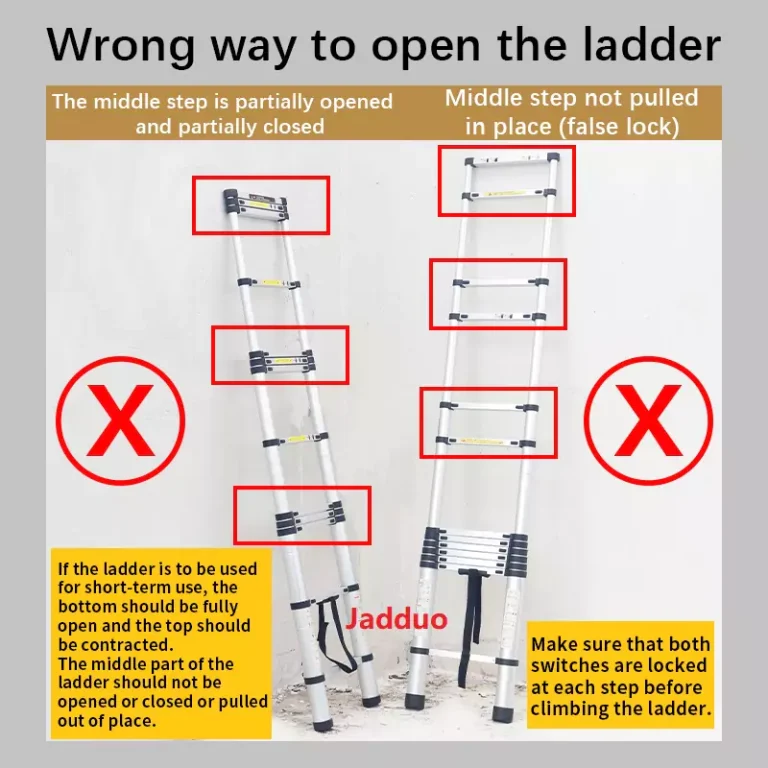

Wrong way to open the ladder
1.The middle step is partially opened and partially closed
2.Middle step not pulled in place (false lock)
| SIZE | Item No. | Straight Ladder Length (m) | CLOSED SIZE (cm) | Packing Size (cm) |
Width (cm) | G.W (kgs) | No.of Step | Max.Load（kgs） | Qty 20FT(pcs) | Qty 40HQ(pcs) |

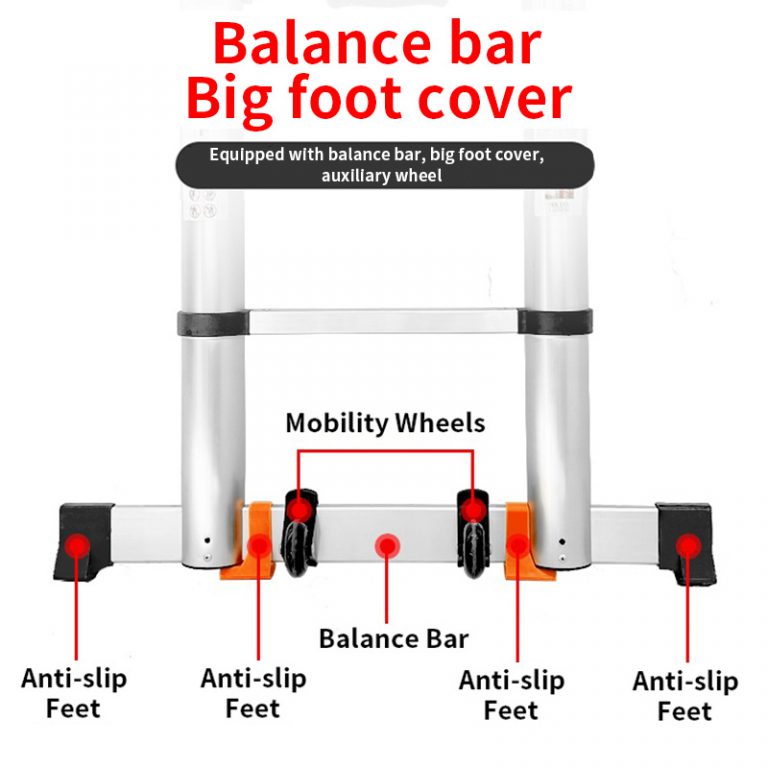

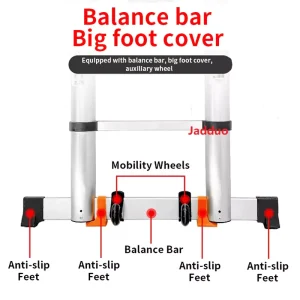

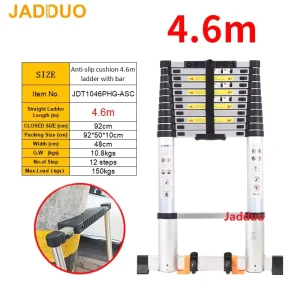

| Anti-slip cushion 4.6m ladder with bar | JDT1046PHG-ASC | 4.6m | 92cm | 92*50*10cm | 48cm | 10.8kgs | 12 steps | 150kgs | 596 | 1447 |
| Anti-slip cushion 5.0m ladder with bar | JDT1050PHG-ASC | 5.0m | 95cm | 95*53*12cm | 48cm | 12.7kgs | 13 steps | 150kgs | 583 | 1417 |
| Anti-slip cushion 5.4m ladder with bar | JDT1054PHG-ASC | 5.4m | 98cm | 98*53*12cm | 48cm | 14.1kgs | 14 steps | 150kgs | 571 | 1388 |
| Anti-slip cushion 5.8m ladder with bar | JDT1058PHG-ASC | 5.8m | 101cm | 101*53*12cm | 48cm | 15kgs | 15 steps | 150kgs | 560 | 1360 |
| Anti-slip cushion 6.2m ladder with bar | JDT1062PHG-ASC | 6.2m | 104cm | 104*53*12cm | 48cm | 16.1kgs | 16 steps | 150kgs | 538 | 1308 |
| Anti-slip cushion 6.5m ladder with bar | JDT1065PHG-ASC | 6.5m | 109cm | 109*53*12cm | 46cm | 15.6kgs | 15 steps | 150kgs | 538 | 1308 |

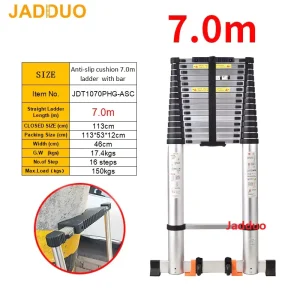

| Anti-slip cushion 7.0m ladder with bar | JDT1070PHG-ASC | 7.0m | 113cm | 113*53*12cm | 46cm | 17.4kgs | 16 steps | 150kgs | 519 | 1259 |
| Anti-slip cushion 7.5m ladder with bar | JDT1075PHG-ASC | 7.5m | 117cm | 117*53*12cm | 46cm | 19.2kgs | 17 steps | 150kgs | 500 | 1214 |

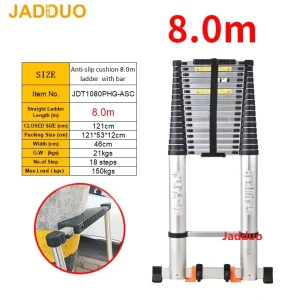

| Anti-slip cushion 8.0m ladder with bar | JDT1080PHG-ASC | 8.0m | 121cm | 121*53*12cm | 46cm | 21kgs | 18 steps | 150kgs | 483 | 1172 |
Whatever the occasion, whether you’re buying for yourself or to distribute, we have it all! Send us inquiry to find out about our volume discounts.
